Two Section Car Gate

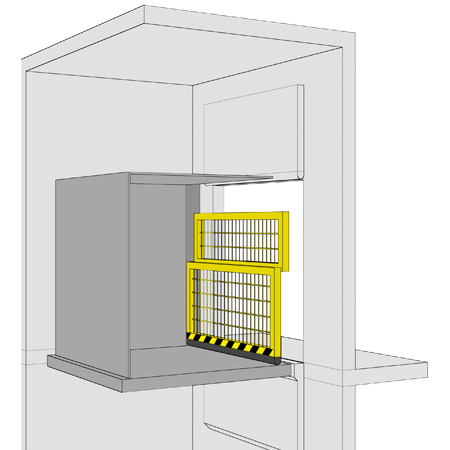

Two-section car gates, also known as North American style gates, consist of a 6-foot high two-section wire mesh panel, with all chains and hangers visible from within the car. Each of the two panels are different heights.

These are used when there is limited overhead space on the top floor and the elevator is not rated to carry passengers.

MIN. RAIL HEIGHT: 1.5 x OPENING HT + 152 mm [6 in]
CAR ENCLOSURE SETBACK: 165 mm [6 1/2 in]
