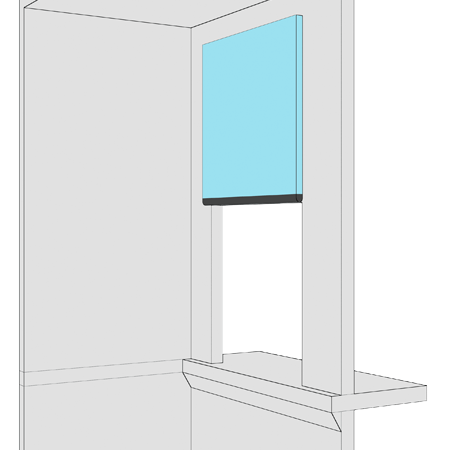

Single Section Slide Up Door

Single section slide-up doors consist of a single-section panel and counterweights on either side of the door.

Slide-up doors are used when there is minimal pit depth and require a building sill projection.

MIN. FLOOR TO FLOOR: 2 x OPENING HT + 143 mm [5 5/8 in]
RETURN SPACE: 460 mm [18 in] BOTH SIDES
CAR CLEARANCE: 171 mm [6 3/4 in]

Single Section Slide Up Door
Single Section Slide Up Door
